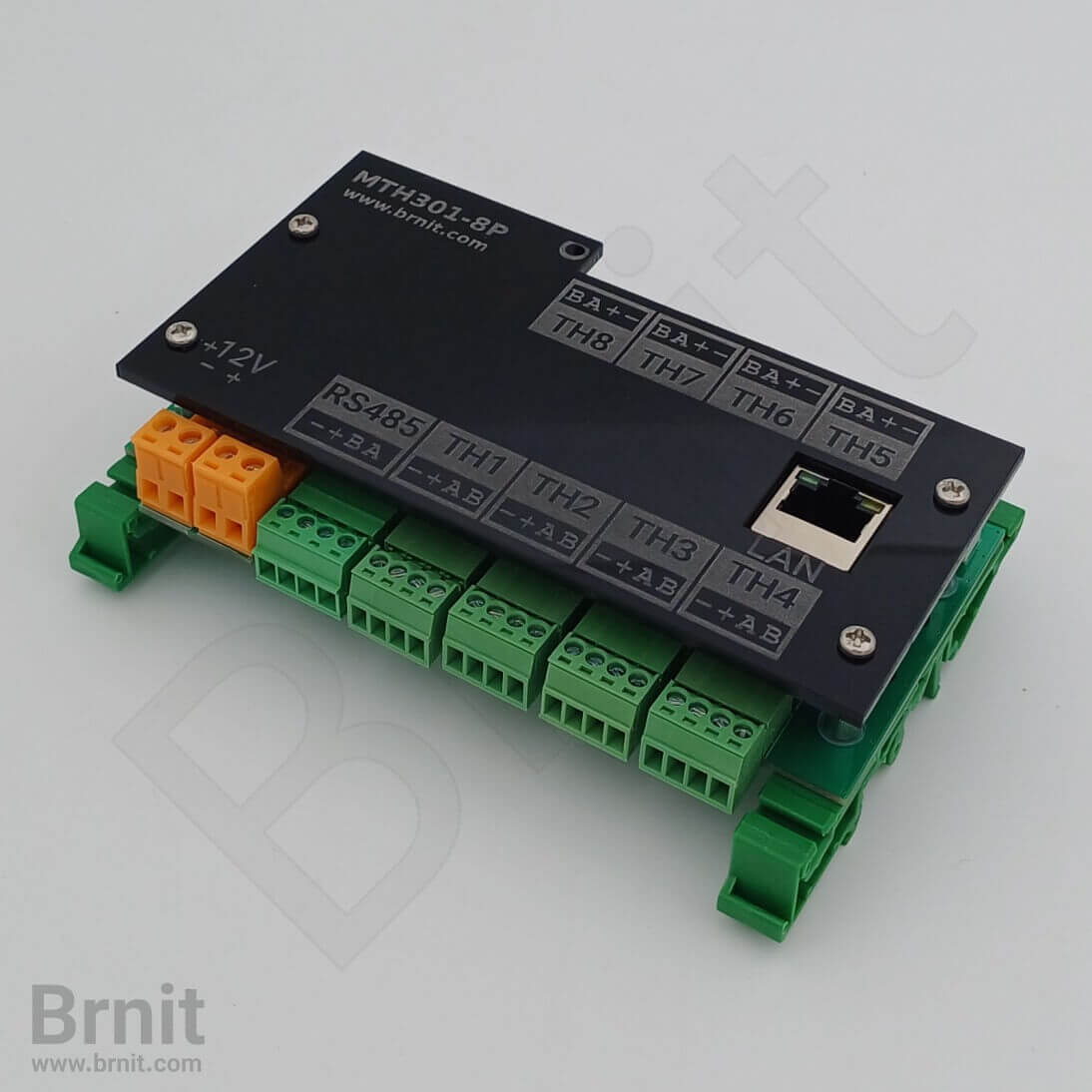

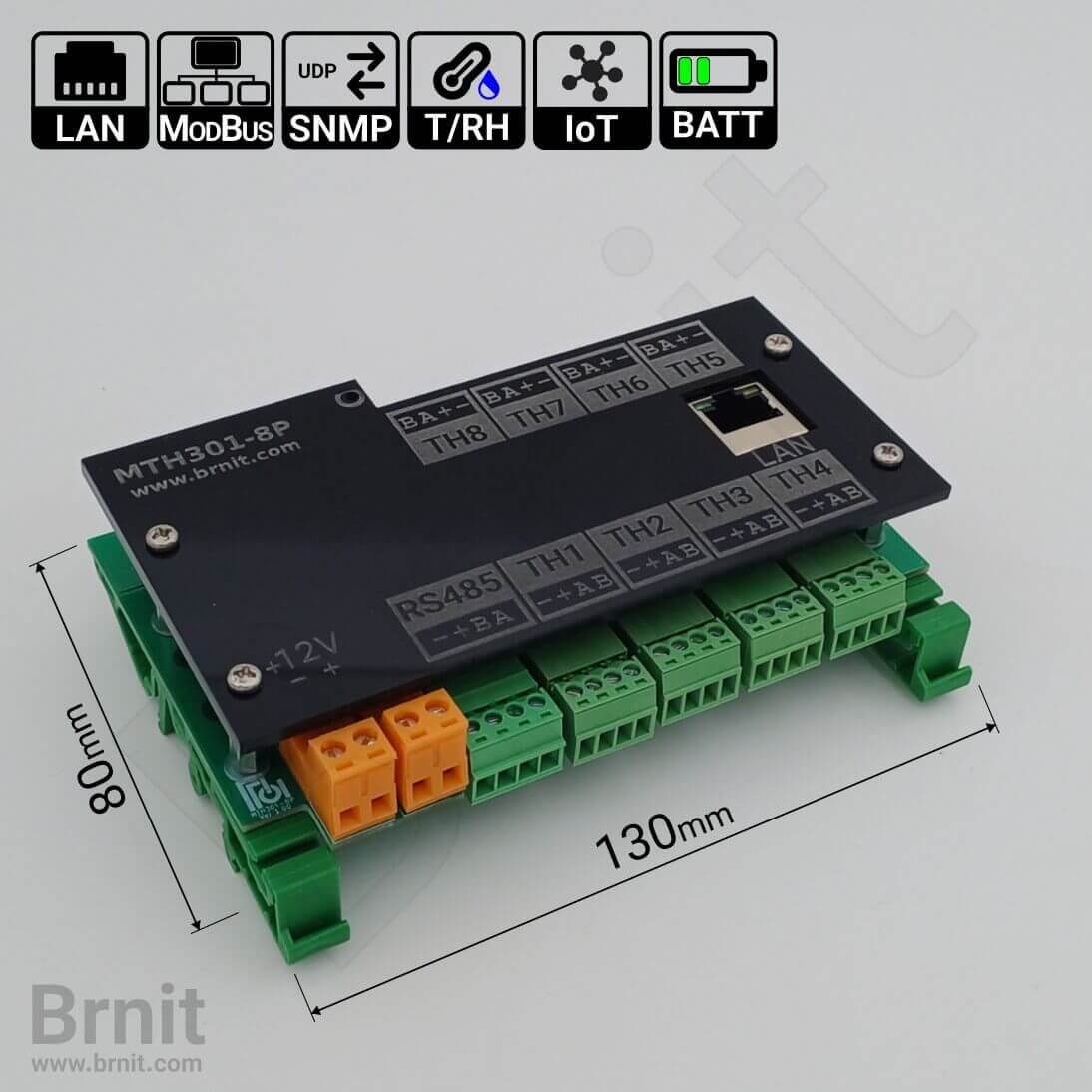

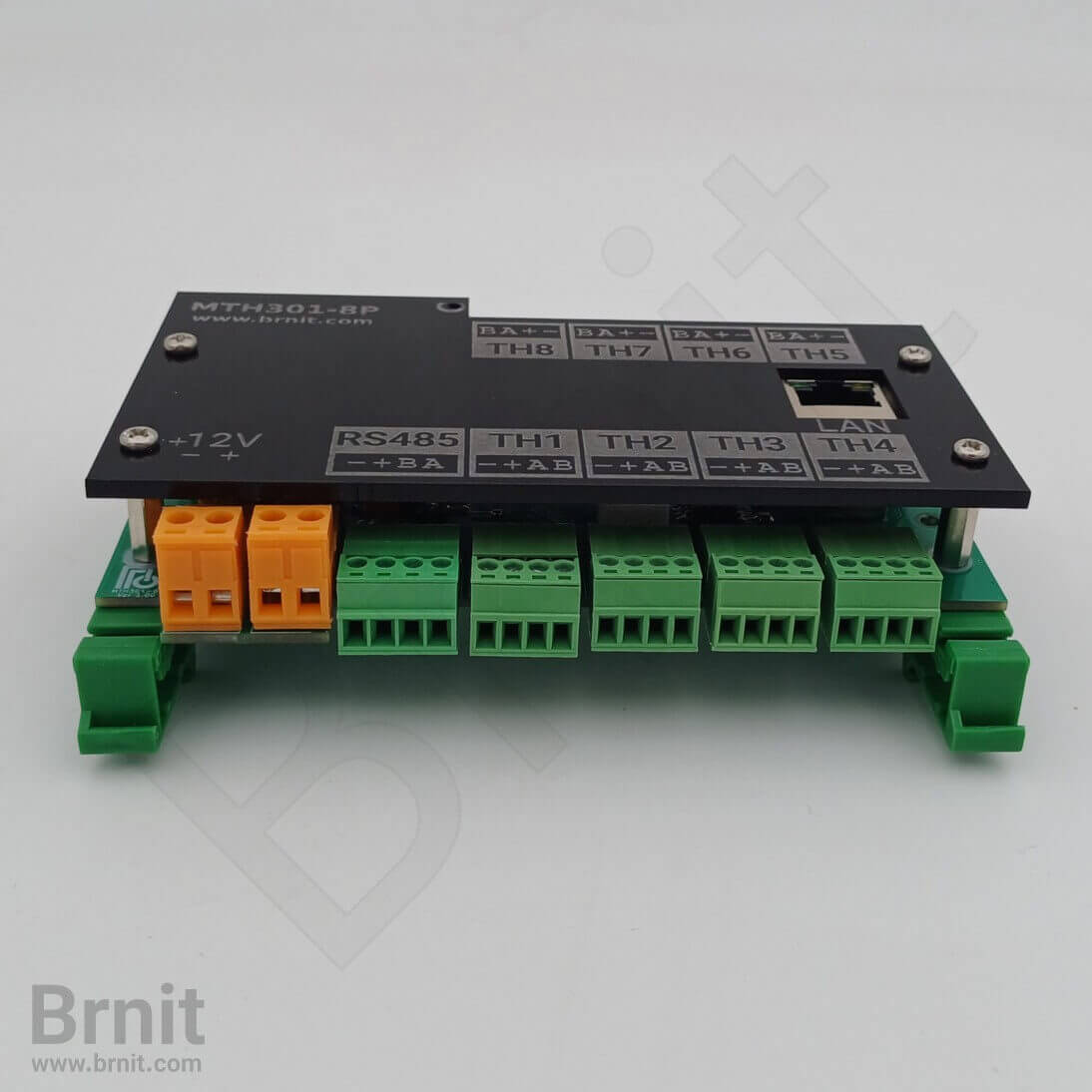

The 8-Channel Temperature & Humidity Measurement Card is a professional industrial solution for precise environmental monitoring. Equipped with 8 dedicated ports for temperature and humidity sensors, this card supports both Ethernet and Modbus (TCP/RTU) protocols, enabling easy integration with PLCs, SCADA systems, and IoT platforms. Perfect for greenhouses, industrial automation panels, BMS, and data centers.
The network-enabled temperature and humidity measurement card is equipped with an RS485 port and supports the Modbus communication protocol, which is among the most widely adopted standards in industrial automation. This 8-port network temperature and humidity card can serve as an expansion module for temperature and humidity input, allowing seamless integration with PLC systems. The module is designed for DIN rail mounting, providing easy installation within control panels. The main objective behind developing and manufacturing the 8-port online temperature and humidity measurement card is to meet the needs of smart industrial automation systems. Besides supporting standard SNMP and JSON protocols for connectivity to monitoring systems, this card also enables data logging and secure storage on Behin Rayaneh Naghshineh servers through integrated IoT capabilities.
The 8-Channel Temperature & Humidity Expansion Card is engineered for use in industrial environments. This module is PLC-compatible and features the widely adopted Modbus communication protocol. With the online temperature and humidity monitoring card, users can accurately measure environmental conditions at multiple points. The card supports up to 8 temperature and humidity sensors, each capable of being installed with customized cable lengths. For each sensor, cable lengths of up to 10 meters are supported—providing flexibility in industrial control panel or facility deployments.
In the network-enabled temperature and humidity measurement device, it is possible to monitor temperature and humidity parameters in several ways.The first method allows users to view temperature and humidity parameters online via the device’s web interface. The second method enables the device to connect to monitoring software such as Zabbix using standard protocolsIn the third method, the device can be linked to Behin Rayaneh Naghshineh servers and utilize their dedicated monitoring platform. The fourth method allows real-time monitoring, recording, and storage of temperature and humidity data through the Behin Rayaneh Naghshineh mobile application.
Similar products for temperature and humidity monitoring include the MTH300 Online Temperature & Humidity Measurement Module and the THD300W Wireless Temperature & Humidity Sensor. The MTH300 features two temperature & humidity sensors, four temperature sensors, and LAN-based internet connectivity. The THD300W provides a single temperature & humidity sensor with WiFi-based internet connectivity for wireless monitoring applications.
This data acquisition card allows the simultaneous connection of up to 8 temperature and humidity sensors. The data from each port can be independently received and managed in real-time online.
This module is highly suitable for multi-point environmental monitoring in data centers, server rooms, cold storage facilities, smart greenhouses, manufacturing plants, laboratories, and industrial warehouses.
Network connectivity is established via an Ethernet (LAN) port, enabling access to local networks or the internet. Additionally, the device features an RS485 port for standard industrial networking.
This device fully supports Modbus RTU (via RS485), Modbus TCP (via Ethernet network), SNMP (for IT network monitoring), and IoT protocols for transmitting data to cloud servers.
You can seamlessly access the data of each sensor through various methods, including the device's built-in web panel, LAN output, RS485 port (Modbus RTU), SNMP, and Internet of Things platforms (MQTT or HTTP API).
Yes. You can specify a safe temperature and humidity range for each individual sensor. If these parameters fall out of the defined range, the device instantly sends alerts via SNMP Traps and/or IoT notifications.
Absolutely. Thanks to its comprehensive support for Modbus RTU/TCP and SNMP, this DAQ card easily integrates alongside PLCs, HMIs, industrial monitoring software (SCADA), and Building Management Systems (BMS).
Setup is highly intuitive; simply plug the sensors into their designated ports, connect the card to the network or RS485 bus, and perform a straightforward configuration via the web interface to begin operation.
Yes, this model is fully IoT-enabled. It can connect directly to IoT servers and cloud dashboards, allowing you to monitor and archive data online from any location.
The MTH301-8P comes with a 1-year warranty and 5 years of after-sales technical support. We also provide continuous firmware updates to ensure maximum reliability and security.
For specialized purchasing consultation, system integration advice, or to place an order, please contact our technical engineering and sales team.
