The DS100 Online Status Monitoring System is designed to prevent potential hazards in various environments caused by fire, gas leaks, high temperatures, unauthorized access, and more. This advanced system provides continuous, real-time online monitoring of the area under surveillance. By connecting a range of detectors, the system enables comprehensive, around-the-clock monitoring for all types of facilities—including server rooms, data centers, factories, and laboratories.
In server room environments, detectors such as smoke, gas, and temperature sensors can be integrated with the DS100 Online Status Monitoring System to ensure precise monitoring and control of critical infrastructure. Equipped with a PIR sensor for door monitoring, the system also helps prevent unauthorized entry. By connecting the DS100 and the ECS100 Online Temperature and Humidity Monitoring System to your monitoring infrastructure, you can achieve complete environmental control for your server room. The system is compatible with centralized monitoring software and can issue immediate alarms in the event of any incident, providing facility managers with full, remote supervision and peace of mind.
The DS100 Online Status Monitoring System allows seamless integration with smoke, heat, gas, motion detectors, and door control modules. One of its main functions is to prevent fire incidents by enabling early-stage fire detection and containment before escalation. In environments where security is critical and access control must be tightly managed, the system effectively monitors and manages entry points. The integrated gas detection capability enables timely identification of gas leaks, preventing hazardous situations from developing. Utilizing the DS100 in combination with other online monitoring solutions—such as temperature and humidity, pressure monitoring, and relay control boards—provides comprehensive environmental monitoring and management.
In environments such as factories—including pharmaceutical, food, and other industrial facilities—the system delivers early detection of fire, excess temperature, and gas leaks, as well as remote door control. When connected to centralized monitoring software, the DS100 facilitates online, continuous supervision of all protected areas, ensuring maximum safety and operational continuity.

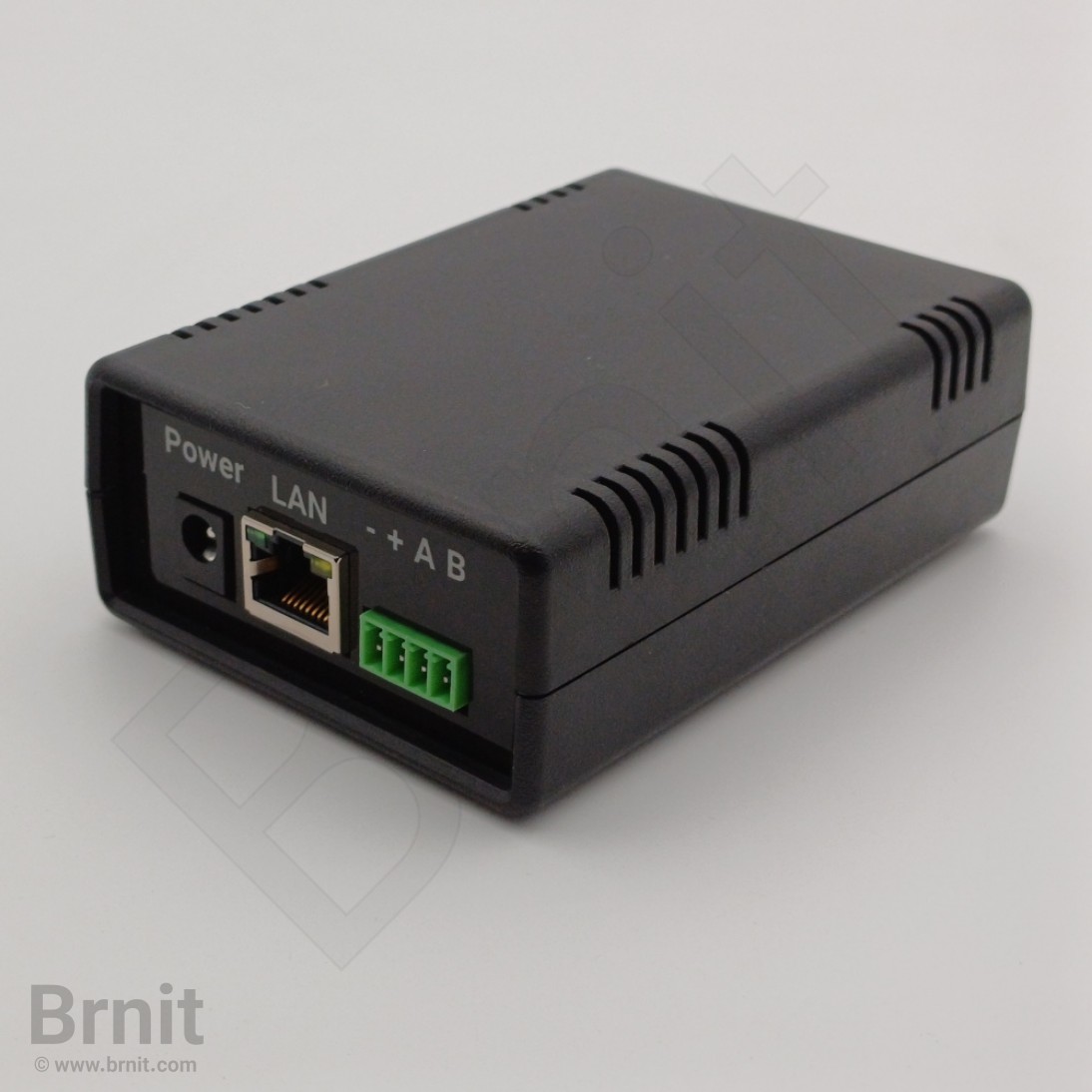

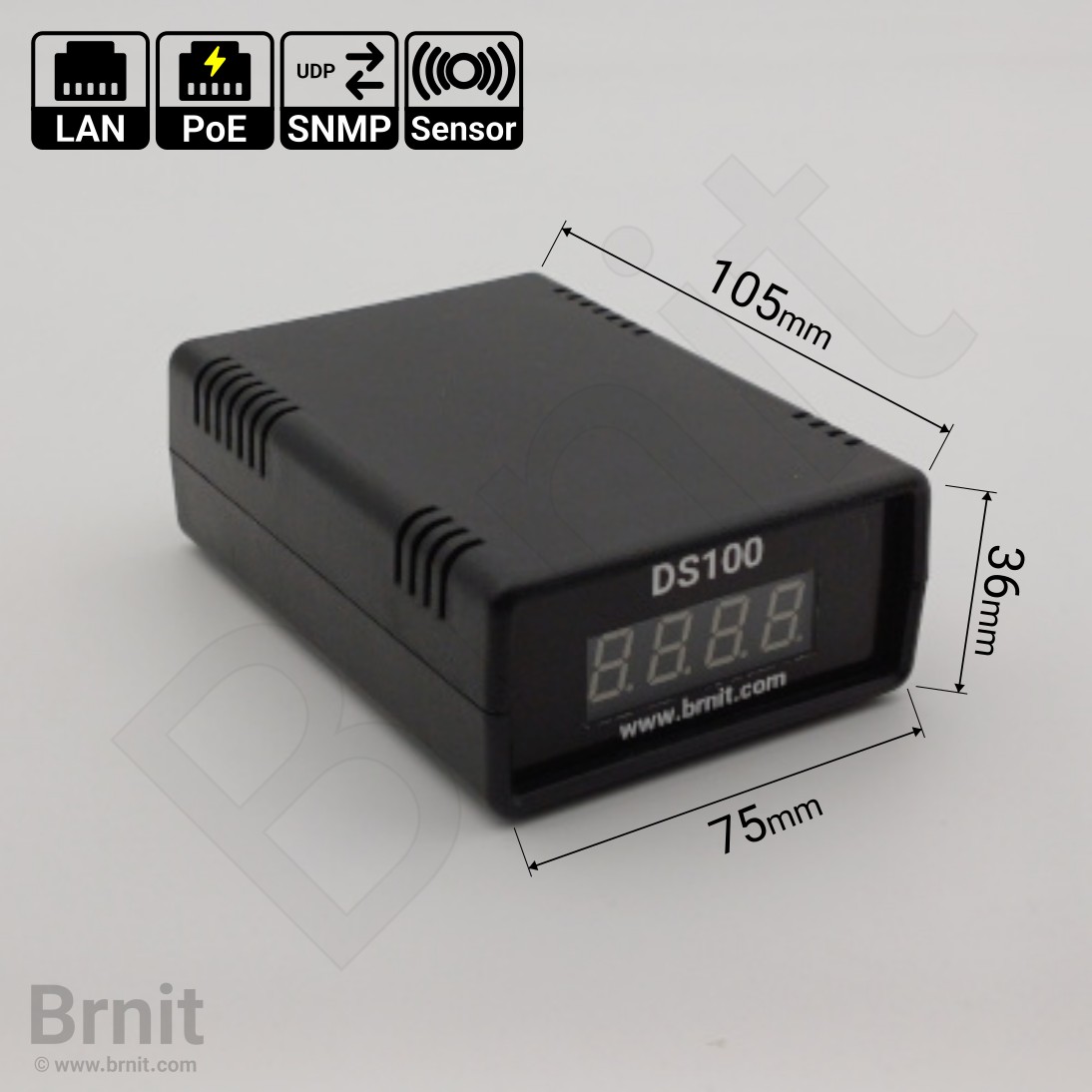

The DS100 is a network-enabled status detection module equipped with a LAN port. It is specifically designed for real-time monitoring, data acquisition, and alerting for environmental and security systems in industrial plants, server rooms, data centers, and smart buildings.
This module supports connection to any detector utilizing relay or dry contact outputs. This includes smoke detectors, magnetic door contacts, gas leak sensors, PIR motion detectors, and heat sensors.
The device connects directly to your network infrastructure via its LAN port. It uses the SNMP protocol to seamlessly transmit status updates and sensor data to central network monitoring systems and NMS software.
Yes, the DS100 is fully PoE compatible. This allows both power and data to be transmitted over a single Ethernet cable, simplifying installation in server racks or electrical panels without the need for a dedicated power adapter.
If PoE is not utilized, the device operates on a standard 12V DC power supply.
The SNMP protocol allows for standardized, efficient integration with Network Management Systems (NMS). This makes the DS100 an ideal monitoring solution for IT departments, server rooms, data centers, and large-scale enterprise network infrastructures.
Yes. Upon the triggering of any connected detector or sensor, the DS100 immediately reports the alarm status across the network using SNMP, ensuring rapid response from the monitoring systems.
Absolutely. The DS100 can be easily integrated into Building Management Systems (BMS) and building automation platforms to monitor environmental conditions and consolidate security alerts.
Common applications include environmental monitoring for heat, smoke, and hazardous gases, door access security in server rooms, industrial automation feedback, and comprehensive facility alarm management.
The DS100 comes with a 1-year warranty and 5 years of dedicated after-sales support. Additionally, software and firmware updates are provided as needed to ensure system stability and security.
To purchase the DS100 Online Status Detection Module, request a technical consultation, or arrange for installation, please contact our expert sales engineering team.
