The DPC301 Modbus Differential Pressure Transmitter is a reliable solution designed for monitoring and controlling differential pressure between two points in industrial environments, production halls, and laboratories. Accurate pressure measurement is essential across various industries, as monitoring and controlling differential pressure plays a critical role in industrial and laboratory processes. To address these needs, the DPC301 is engineered to deliver precise and continuous monitoring and control of pressure differentials in your facility.

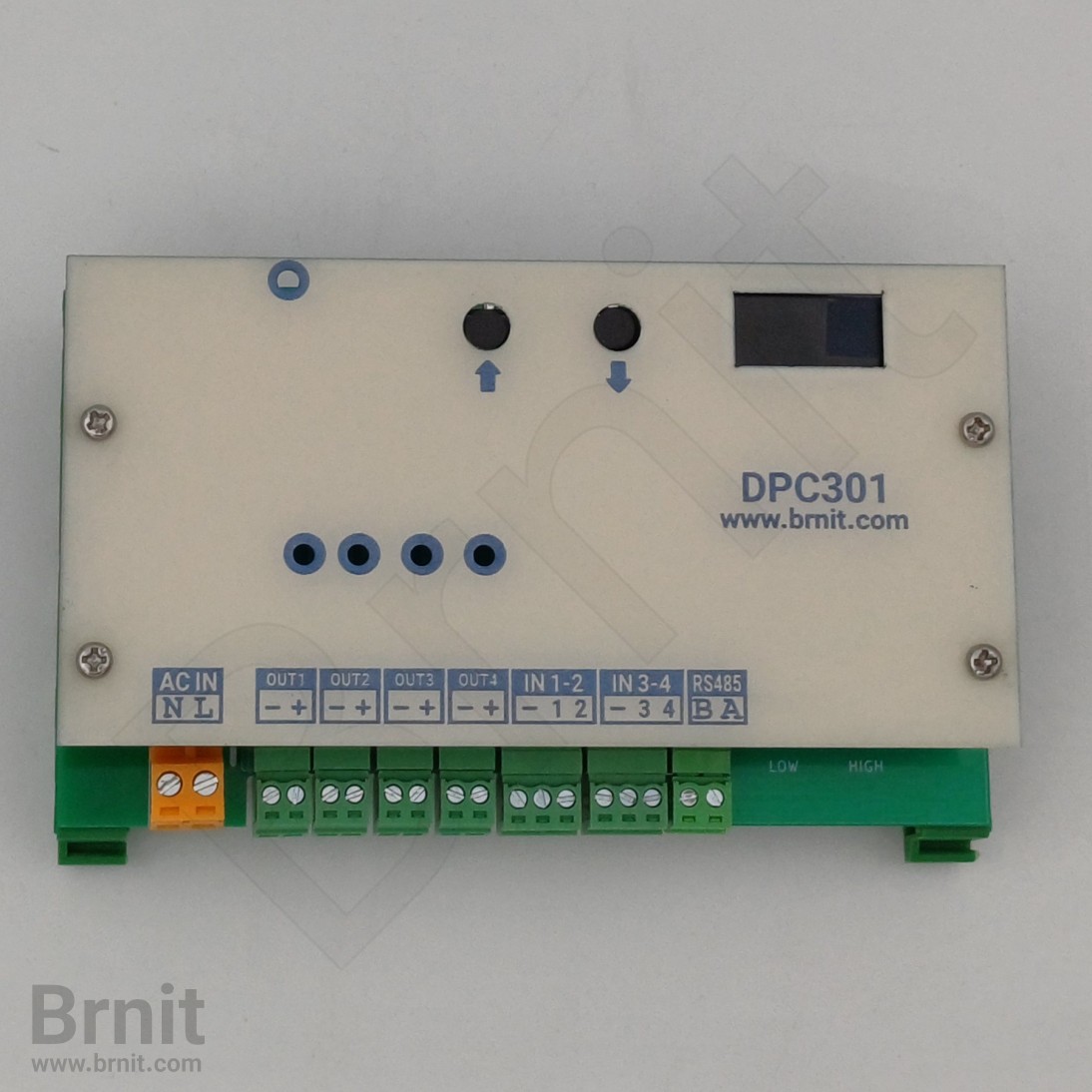

The Modbus Differential Pressure Controller features an integrated pressure sensor with two separate ports, enabling users to measure differential pressure by placing one port outside and one inside the monitored environment. The device includes four output ports, allowing the connection of 12V relays for direct pressure control in the monitored area. The transmitter is equipped with an RS485 port and communicates using the standard Modbus protocol, ensuring seamless integration with PLCs and industrial automation systems. In addition to supporting Modbus communication, the differential pressure controller features a vivid color display for real-time visualization of pressure values. Designed for panel mounting, the DPC301 offers flexible installation inside control panels, with custom panel design and implementation available based on customer requirements.
The Modbus Differential Pressure Transmitter is designed to accurately measure and control the differential pressure between two environments. The sensor features two separate ports, typically installed with one port inside the monitored area and the other outside, enabling precise measurement of both positive and negative pressure. This capability is particularly important in various applications where maintaining controlled pressure levels is critical.
One of the main use cases is in poultry farms, where creating negative pressure and lowering indoor air pressure allows fresh air to enter the facility. By installing the differential pressure transmitter inside the poultry house, users can monitor and regulate the desired pressure level in real-time. The device’s relay outputs can be used to adjust inlets within the hall to maintain pressure within the optimal range. Communication is supported via the Modbus protocol, and the system can connect directly to PLCs. By integrating the differential pressure transmitter with an industrial automation (PLC) system, users can achieve comprehensive monitoring and fully automated control of environmental conditions in breeding centers and industrial halls.
The Modbus differential pressure transmitter and controller are suitable for a wide range of industries. In addition to monitoring differential pressure, the device’s output ports allow for relay connections, enabling direct control of environmental pressure. In facilities where specific positive or negative pressure is required, essential equipment such as fans or ventilators can be managed to maintain the desired pressure using the transmitter’s outputs. If alternative pressure measurement ranges are needed (for example, other than 125 Pascal), the pressure sensor can be replaced to meet application requirements. The transmitter features an RS485 port for seamless PLC and industrial network integration. These differential pressure monitoring systems are available in various models, designed and manufactured by Behin Rayaneh Naghshineh to match customer needs. For applications requiring network connectivity, the Online Differential Pressure Measurement System (DP300W) is recommended. For portable requirements, the Portable Differential Pressure Gauge (DP200) offers convenient, rechargeable battery-powered operation, and also includes built-in temperature and humidity sensors alongside differential pressure measurement.
The DPC301 Differential Pressure Transmitter and Controller is an industrial-grade device equipped with a high-precision sensor. Designed to monitor and control air pressure differences within a range of -125 to +125 Pascals (Pa), it is widely used in HVAC systems, cleanrooms, production lines, and any environment requiring strict air pressure control.
Yes, this differential pressure transmitter features a built-in color display that provides accurate, real-time readings of the differential pressure measured in Pascals (Pa).
The DPC301 supports the Modbus protocol via an RS485 port, ensuring seamless integration with industrial automation systems, SCADA, and PLCs.
Thanks to its RS485 port and Modbus RTU support, the device connects directly to various PLCs without the need for intermediaries, enabling efficient transmission of differential pressure data and precise output control.
The DPC301 sensor accurately measures differential pressure within a range of -125 to +125 Pascals. The precise real-time numerical values are continuously shown on the device's display.
The DPC301 is equipped with 4 digital input ports and 4 digital output ports, which can be utilized for connecting auxiliary sensors, switches, and controlling external equipment such as fans or dampers.
The input power supply for this device is 220V AC, making it ideal for direct integration into standard industrial electrical panels.
Yes, featuring a robust industrial design and standard dimensions, this differential pressure transmitter is easily mountable in electrical panels and industrial control racks.
All real-time data, alarms, and I/O statuses can be monitored and controlled locally via the color display, or remotely through the RS485 port by connecting it to a central monitoring system or PLC.
The device comes with a 1-year warranty and 5 years of dedicated after-sales service and technical support.
