The 4-20mA analog current loop is a widely adopted industry standard across numerous sectors. Its ease of use and cost-effectiveness in instrumentation equipment have led to its extensive application in various industries. The 4-20mA analog current signal is preferred for long-distance transmissions because, unlike voltage, its strength does not diminish over extended runs. The Portable 4-20mA Current Loop Meter CTV200 is specifically designed and manufactured for monitoring sensors with a 4-20mA analog current output.
Many industrial sensors, including those for temperature, pressure, level, flow, pH, and more, feature 4-20mA analog outputs. Consequently, measuring these sensor signals is crucial. Given its portability, the 4-20mA Signal Tester can be effectively utilized directly at the sensor’s installation site. One of its primary applications is in industrial facilities. With the widespread use of 4-20mA output sensors and transmitters in diverse environments, the 4-20mA Current Loop Meter enables on-site monitoring and testing of sensors, transmitters, and control equipment without the need to remove them from their installed locations. This industrial calibrator can also be used as a 4-20mA equipment calibrator in the petrochemical, oil & gas, water & wastewater industries, and within various control systems.
Given the widespread use of transmitters and sensors with 4-20mA analog outputs across various industries, monitoring these sensors is of paramount importance. The Portable 4-20mA Measurement Meter is designed and manufactured for on-site sensor monitoring. Utilizing the Portable 4-20mA Current Loop Meter enables sensor measurement, along with the ability to detect sensor malfunctions. A current reading outside the 4-20mA range indicates a sensor fault; specifically, a current display of less than 3.8mA or greater than 20.5mA is considered an error.
The Portable 4-20mA Measurement Meter can be employed in various environments. In orchard settings that use various equipment and sensors—such as pressure, temperature, level sensors, etc.—with 4-20mA outputs, this portable meter enables convenient sensor monitoring in their installed locations.
If 4-20mA signal measurement and testing are needed in industrial environments but portability is not required, non-portable 4-20mA measurement instruments are available. These units can be mounted in electrical panels and are suited for industrial applications in production lines and control rooms. The 4-20mA Analog Input Card features eight 4-20mA measurement ports and supports Modbus and Ethernet protocols. The Multi-Function Network IO Expansion Card offers four 4-20mA measurement ports, along with several digital inputs and outputs, and supports Modbus, Ethernet, and cellular connectivity.

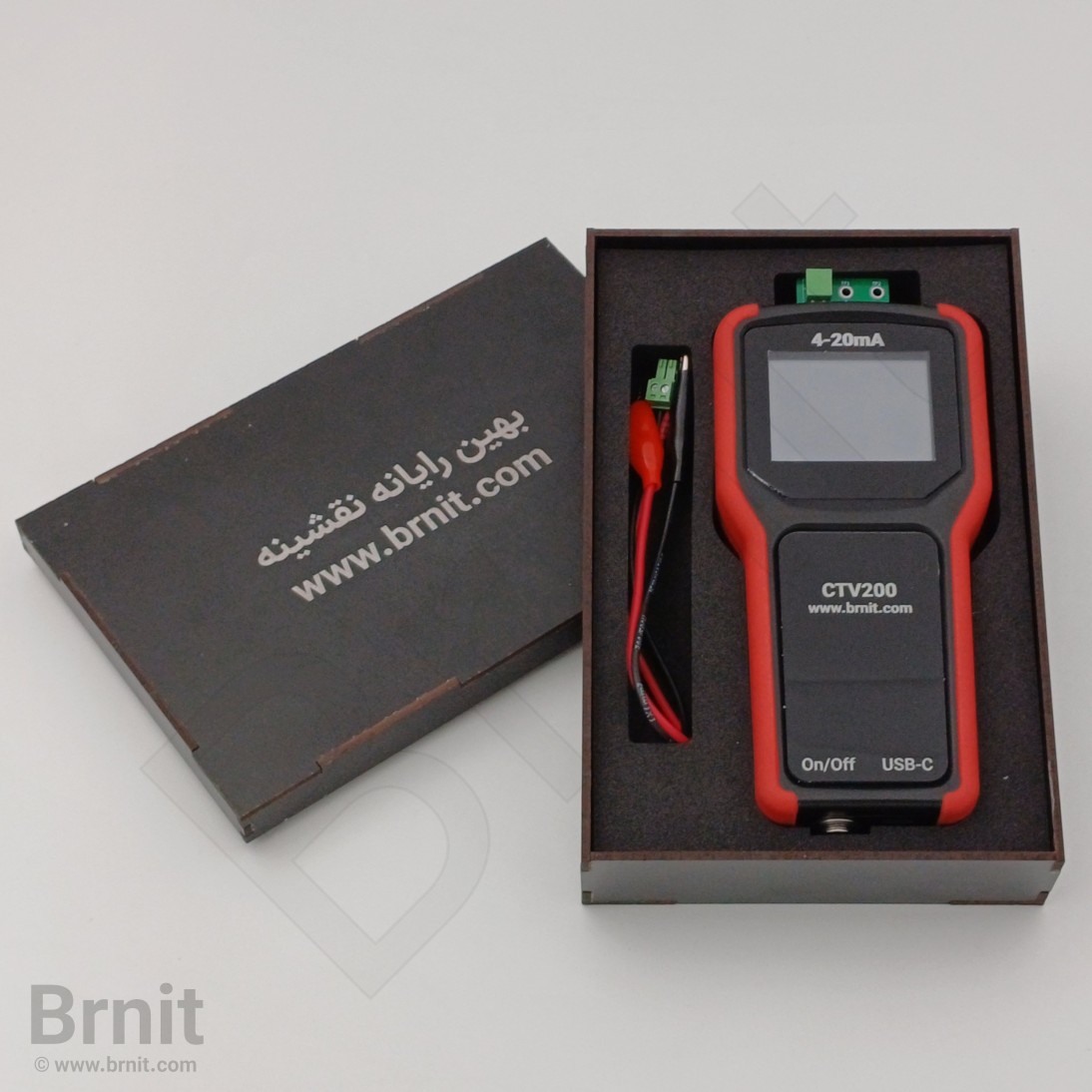

The CTV200 is a handheld industrial measurement device specifically designed to measure 4 to 20 mA current loop signals from various process sensors and transmitters. It is widely used for rapid on-site troubleshooting, calibration verification, and field diagnostics.
The device is compatible with any industrial sensor, transducer, or transmitter featuring a standard 4 to 20 mA current output. This includes pressure transmitters, temperature sensors (RTD/thermocouple transmitters), flow meters, level indicators, gas detectors, and other process automation instrumentation.
Weighing just $225$ g, the CTV200 combines an ergonomic handheld design with a built-in rechargeable battery and a clear color display. It provides field engineers and maintenance technicians with a lightweight, dependable tool for plant-floor inspections and commissioning.
Yes, the CTV200 is equipped with a high-resolution color display that clearly presents real-time current measurements, ensuring fast and accurate readings in bright outdoor sites or dimly lit industrial environments.
The device is powered by an internal rechargeable battery and can be conveniently recharged via a standard USB Type-C (USB-C) port, eliminating the need for disposable batteries and ensuring maximum uptime in the field.

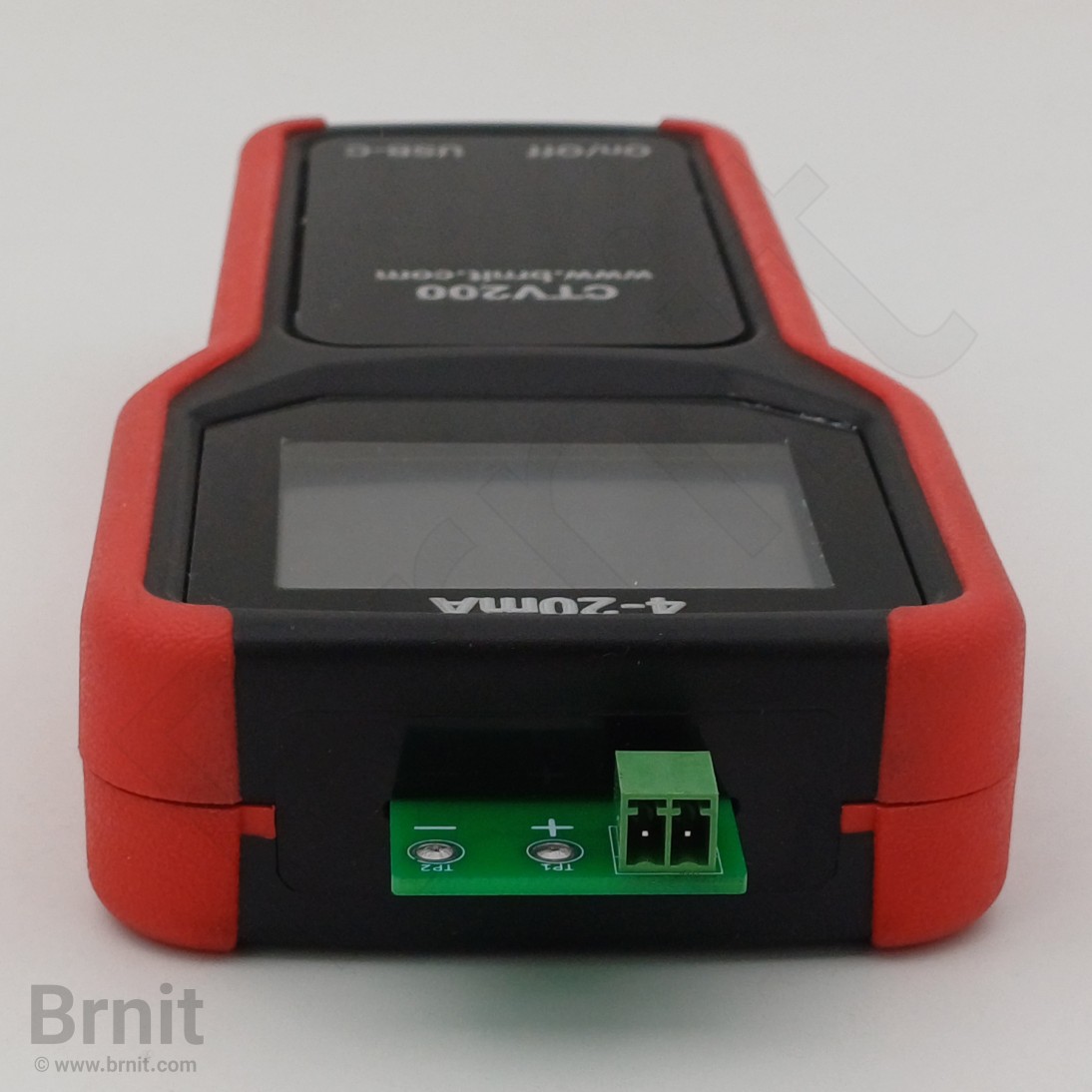

Technicians can connect standard 4 to 20 mA loop signals either via conventional wire terminals or by using dedicated quick-connect probe connectors, allowing flexible and secure connections during fast-paced diagnostic tasks.

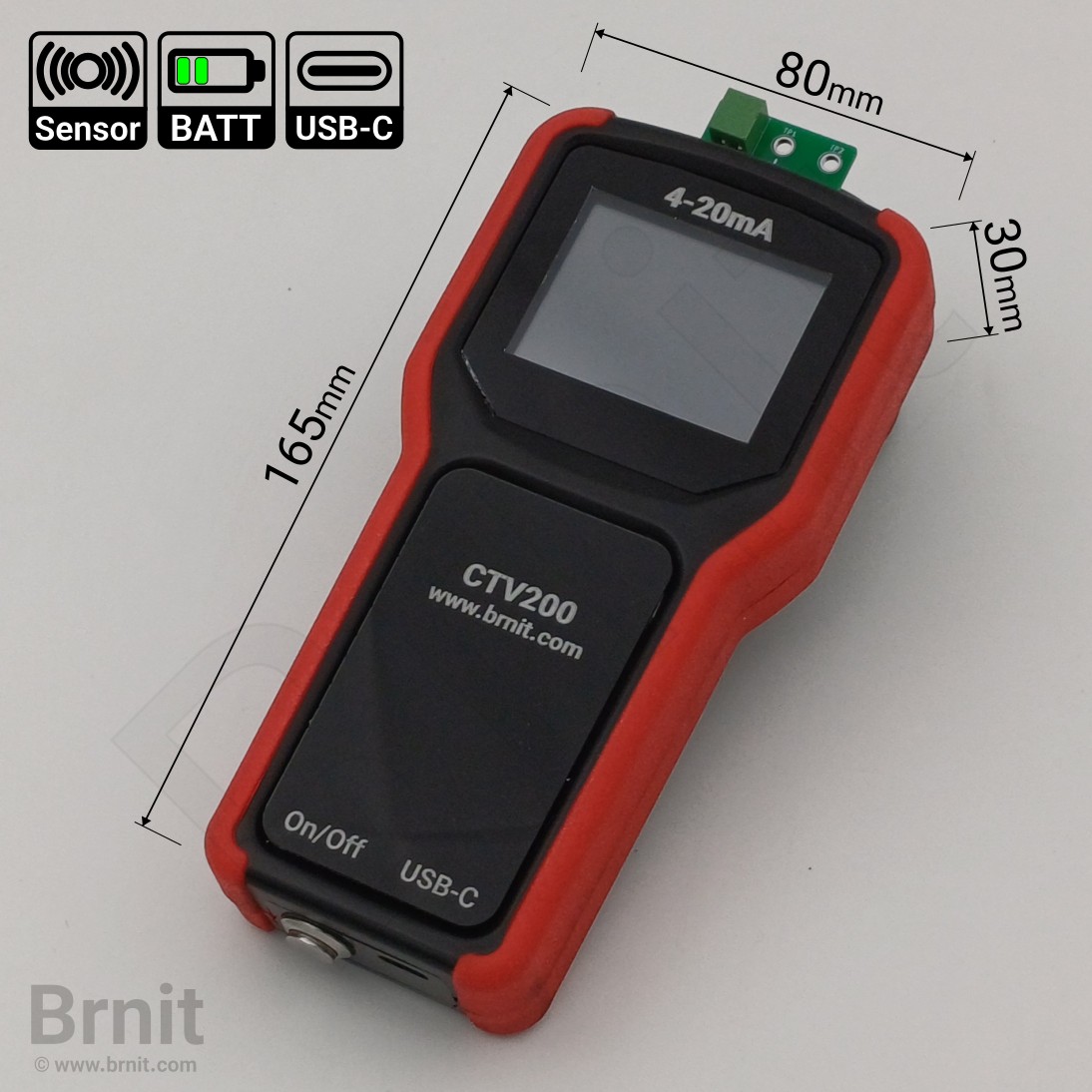

The unit weighs only $225$ g and features a highly compact form factor, making it easy to carry in a tool pouch and comfortable for single-handed operation during extensive field audits.
Unlike standard multimeters, the CTV200 is purpose-built for 4 to 20 mA industrial process loops. Key advantages include dedicated quick-connect probes, high reading stability, a built-in rechargeable battery, a specialized color interface, and simplified operation without complex dial adjustments.
The CTV200 is ideal for oil and gas facilities, petrochemical plants, water and wastewater treatment facilities, power generation plants, food and pharmaceutical manufacturing, and any automation environment utilizing 4 to 20 mA process instrumentation.
The CTV200 comes with a 1-year warranty and 5 years of dedicated after-sales technical support, ensuring long-term reliability for your maintenance operations.
For technical inquiries, pre-sales consultation, or to order the CTV200 portable loop tester, please contact our sales and engineering support team directly.
