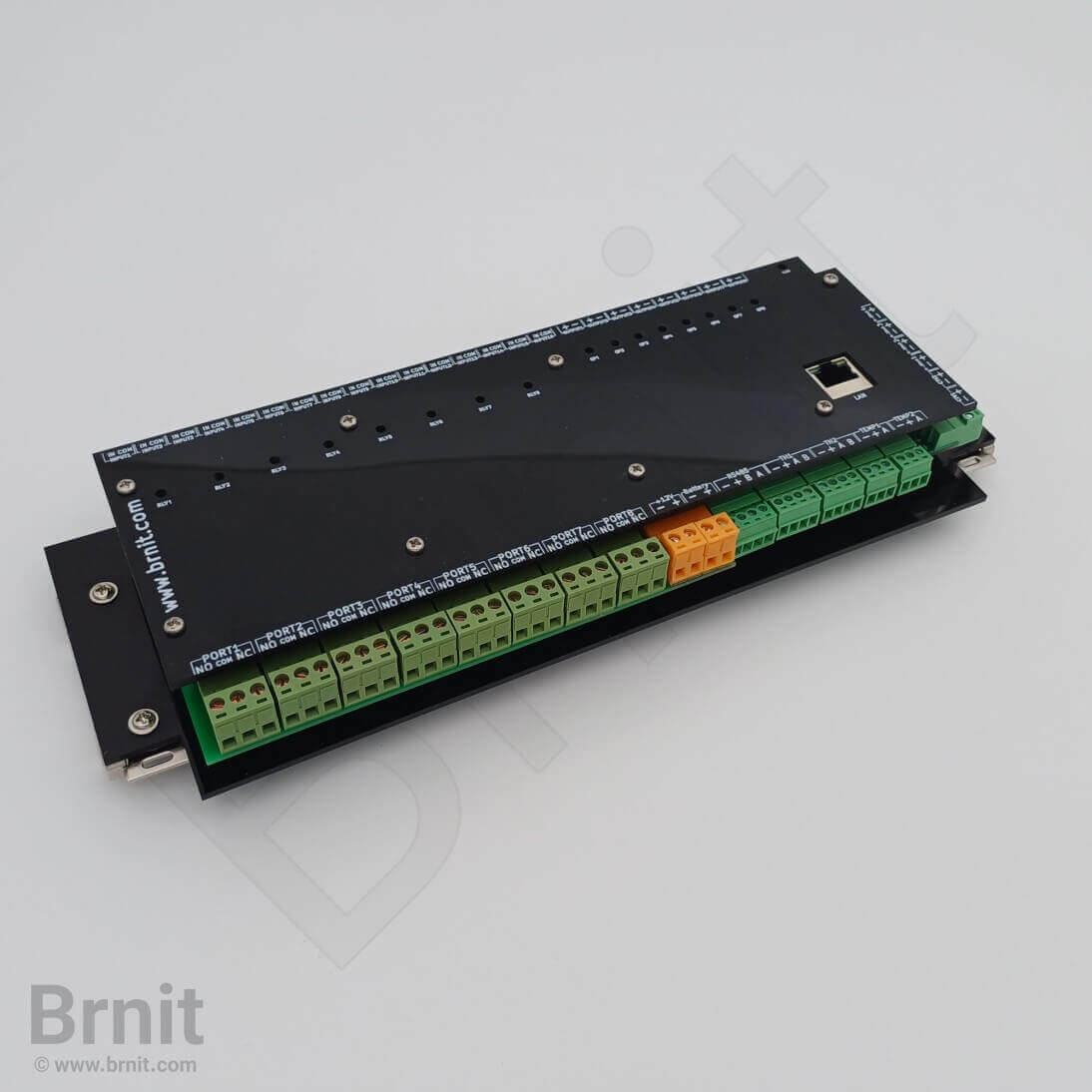

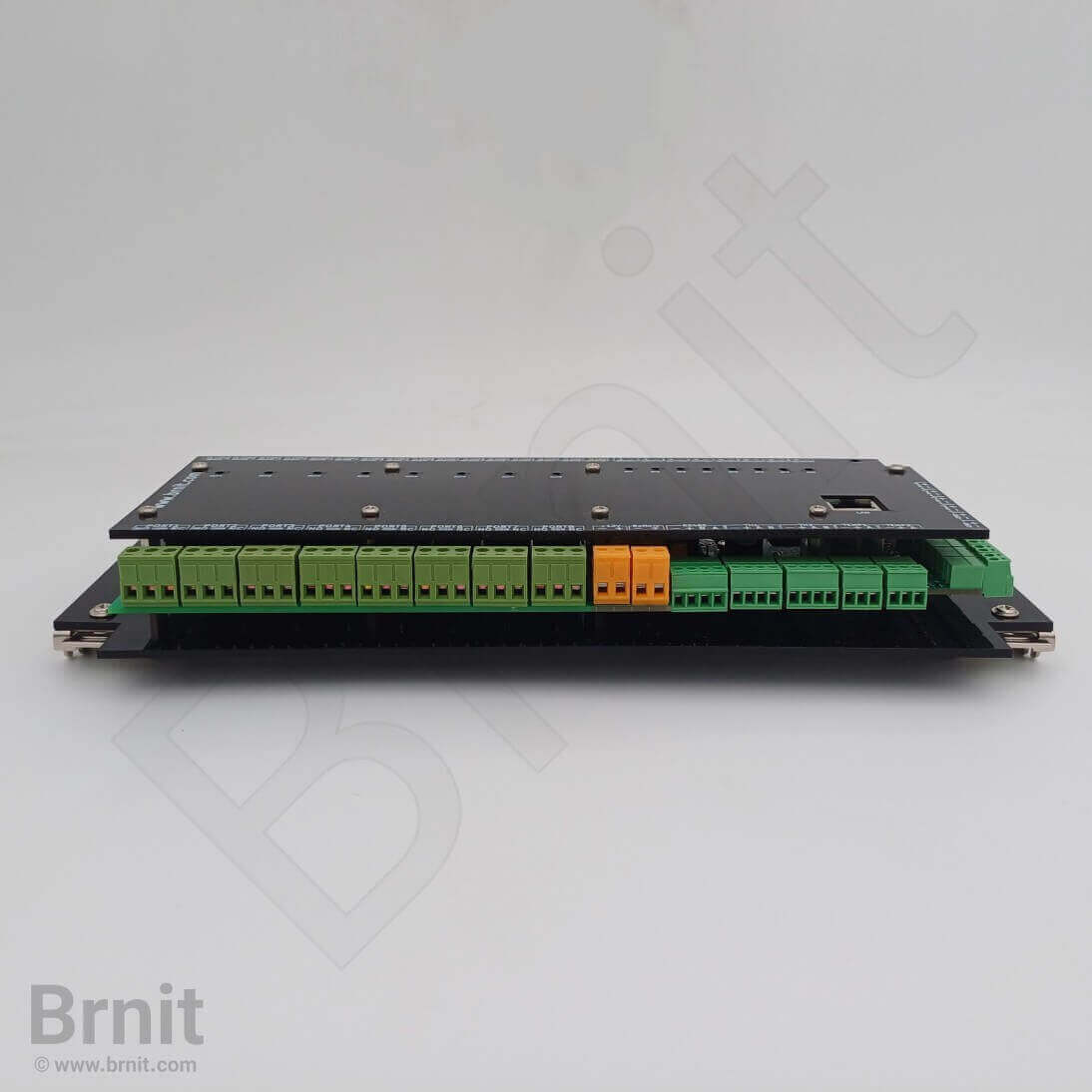

Multi-Function Network IO Expansion Card UIO301G
In industrial environments, implementing efficient smart automation requires advanced IO devices to ensure optimal system control. The Multi-Function Network IO Expansion Card is specifically designed and engineered for executing and managing commands in industrial automation applications. This versatile card features 8 relays, 8 digital outputs, 16 digital inputs, 4 analog input channels (4-20mA), 2 temperature sensors, and 2 temperature & humidity sensors.
In addition to advanced output control, the card’s onboard sensors and 4-20mA analog inputs enable real-time monitoring of process variables—making it ideal for integrating with transmitters for pressure, flow, level, industrial valves, and more. Full PLC compatibility is provided via the RS485 interface and Modbus communication protocol.
The Online IO Expansion Card is DIN rail-mountable for easy panel installation and can be customized for user-specific control panel designs. As a modular expansion card for automation systems, it seamlessly connects to PLCs, supports network and Modbus protocols, and features built-in GSM module for IoT-ready remote monitoring and control.
Applications of the Modbus IO Expansion Card
- Modbus expansion card for smart poultry farm automation
- Multi-function network IO card for intelligent greenhouse automation
- Multi-purpose automation card for orchard management
- Aquaculture center automation and monitoring
- Online multi-function card for mushroom cultivation facilities
- Modbus IO card for data center control and monitoring
- Expansion card for food industry automation systems
- Modbus input/output card for factory automation
- Modbus and network IO expansion for pharmaceutical automation
- Online multi-function card for warehouse, cold storage, and facility automation
- Environmental control for smart home and BMS applications
- PLC-compatible expansion card for multi-purpose automation
- Modbus expansion card for industrial environments
General Features of the Multi-Function Online Expansion Card
The Multi-Function Network IO Expansion Card is engineered for industrial environments, supporting seamless integration with PLCs via the Modbus protocol. This online IO card enables reliable control and monitoring in industrial automation systems. Equipped with four 4-20mA analog input ports, it connects easily to a wide range of 4-20mA sensors and transmitters for real-time process monitoring.
The device features two temperature and humidity sensors and two temperature sensors, designed for flexible installation with extended cable lengths (up to 10 meters for T&H sensors, 15 meters for temperature sensors). The card is DIN rail and panel-mount ready, with custom control panel design available upon request.
Multiple monitoring and control methods are supported: access device data online via a built-in web interface, connect with standard monitoring software such as Zabbix using Modbus and open protocols, or integrate with BRNIT cloud servers for centralized, IoT-based monitoring. Mobile app support provides parameter monitoring, logging, and configuration from anywhere. Optional GSM module offers remote communication and data acquisition over cellular networks.
For users requiring similar functionality with fewer features, the PC301 Network Relay Controller Card offers 8 relays with Modbus and PLC compatibility, and Ethernet connectivity via LAN. Alternatively, the PC301W Wireless Relay Board provides 4 relays and WiFi-based internet access for wireless automation.
Technical Features of the Multi-Function Modbus IO Expansion Card
- Supports standard protocols: SNMP and JSON
- Internet and LAN connectivity
- Modbus RTU and Modbus TCP communication
- Integrated SIM card module for GSM connectivity
- PLC-compatible expansion card
- 2 temperature & humidity sensors included
- 2 temperature sensors included
- Temperature measurement range: -40 to +125°C
- Temperature measurement accuracy: ±0.3°C
- Humidity measurement range: 0–100%
- Humidity measurement accuracy: ±2%
- Remote sensor calibration capability
- Remote firmware/software update capability
- 12V operating voltage
- 8 relays, 5A each
- RS485 communication port
- 4 x 4-20mA analog input ports for sensor and transmitter integration
- 16 digital input ports
- 8 digital voltage output ports
- IoT-enabled functionality
- Custom control panel design and integration upon request
Advantages of Using the Multi-Function Network IO Expansion Card
- Continuous data processing and advanced process control
- Enhanced accuracy and improved system performance
- High-precision measurement of monitored parameters
- Simultaneous monitoring of two temperature & humidity points and two separate temperature points via a single transmitter
- Direct connection of up to four 4-20mA output sensors to the transmitter
- Flexible sensor installation with cable lengths up to 10–15 meters
- Real-time online monitoring of all device parameters
- Increased efficiency and guaranteed reliable results
- Remote, anytime, anywhere access to monitoring data
- Graphical and chart-based data visualization via monitoring software
- Multiple network options: LAN, Modbus, and SIM card module
- IoT-enabled functionality for smart environments
- Online device access and control via mobile application
- Direct connectivity to BRNIT cloud servers for secure data storage—no local server required
- Seamless integration as a multi-function expansion card for PLCs

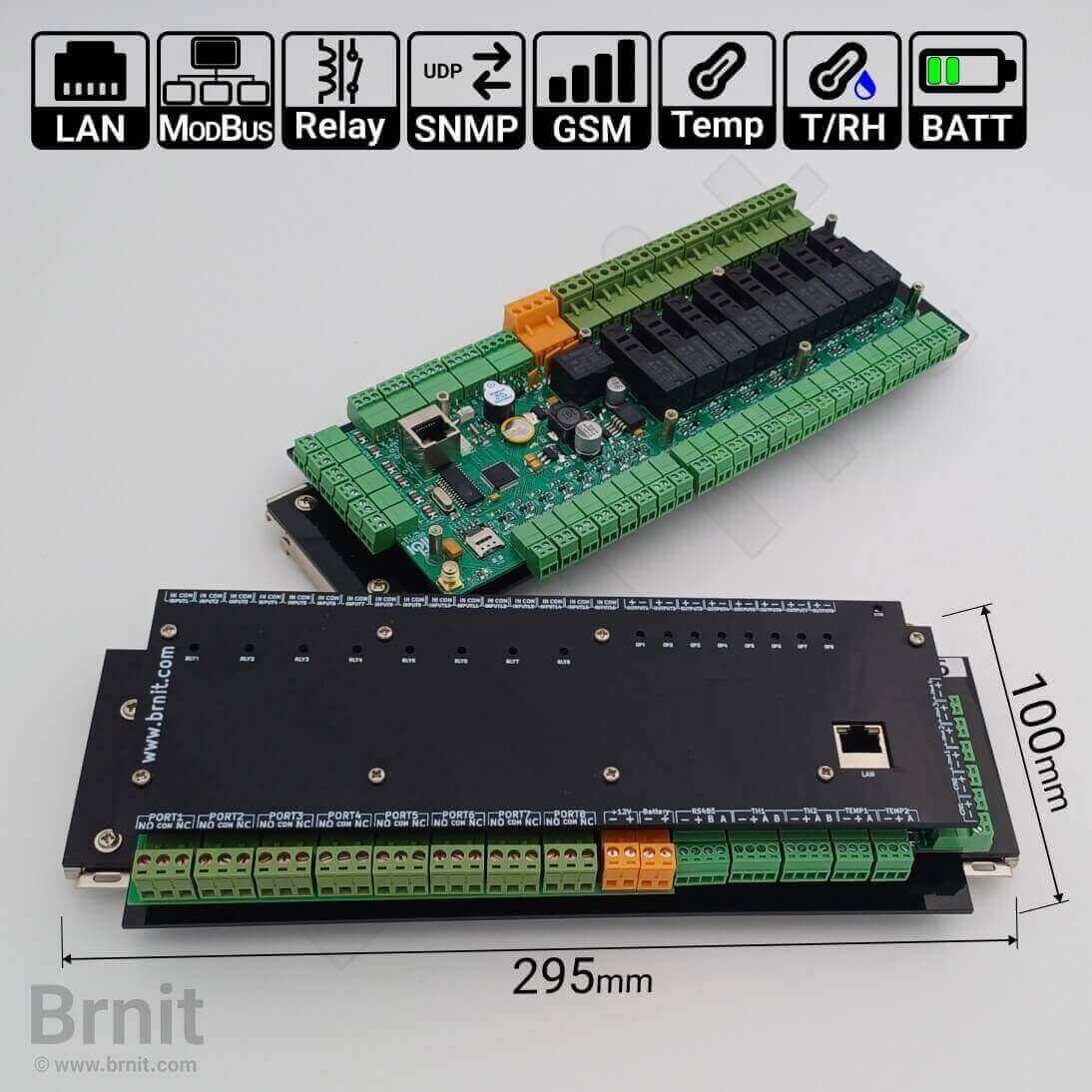

Device Dimensions:
- Length: 295 mm
- Width: 100 mm
